No. EE420800DW/421450 WkBearings high temperature for strip rolling mills
161 sold in last 3 hours
Hurry! Over 5 people have this in their carts
Double-row tapered roller bearings feature rigid back-to-back configuration, factory-calibrated preload/clearance, and excellent tilting moment resistance for heavy-duty scenarios.
Estimated Delivery: Tue, Jun 02 – Sat, Jun 06
... people are viewing this right now
Imperial Double-Row Tapered Roller Bearing
The double-row tapered roller bearing consists of one double-row outer ring and two inner rings each assembled with tapered rollers and cages. A spacer ring is usually installed between the two tapered inner rings of this bearing type. Thus, these bearings are ready-to-mount units, as their axial clearance or preload has already been set during the manufacturing process. The tapered inner rings of such bearings are arranged in a back-to-back configuration, which causes the load lines to diverge toward the bearing axis. Therefore, the bearings are suitable for rigid arrangements and can withstand relatively large tilting moments.

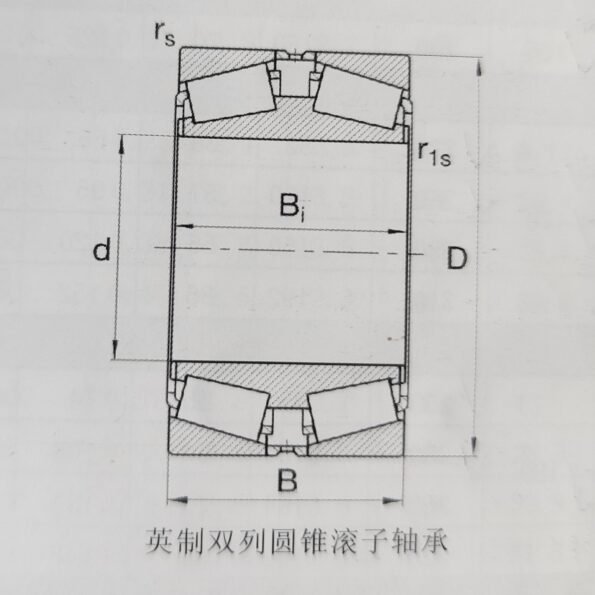

| Overall Dimensions(mm) | d | 203.2 |
| D | 368.3 | |
| T | 158.75 | |
| B | 152.4 | |
| r(1.2min) | 3.3 | |
| r(3.4min) | 3.3 | |
| Basic Rated Load(KN) | Dynamic Load | 1870 |
| Static Load | 3350 | |
| Weight(kg) | 75 | |
| inner diameter(mm) | 203.2 | |
| Calculation Parameters | e | 0.4 |
| Y₁ | 1.7 | |
| Y₂ | 2.5 | |
| Y₀ | 1.6 | |
| Reference Bearing Model | SKF | BT2B332683/HAI |
| FAG | 541397 | |
| Bearing Model | EE420800DW/421450 | |
