FAG 532273 WkBearings long life for continuous rolling mills
80 sold in last 15 hours
Hurry! Over 5 people have this in their carts
Depending on the application, the bearings can be supplied with or without a spacer ring between the two outer rings. They can also be provided as self-contained units with a retaining sleeve fitted over the outer rings. Compared with conventional bearings, these self-contained bearing units with retaining sleeves are characterized by high load capacity and ease of use. The sleeve integrates the inner and outer rings into a single assembly. This design significantly reduces outer ring deformation caused by heavy axial loads, thus optimizing the stress distribution on the rolling contact surfaces and contributing to extended service life. The axial internal clearance is determined by the sleeve. There is no need for spring preloading. The simplified configuration design results in cost-effectiveness and easier installation.
Estimated Delivery: Sat, Feb 14 – Wed, Feb 18
... people are viewing this right now

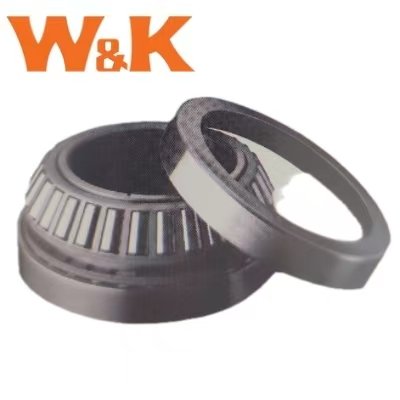

Imperial Double-Row Tapered Roller Bearing
Double-row tapered roller bearings with a large cone angle feature an exceptionally high axial load-carrying capacity and are mainly used as thrust bearings for supporting rolls in rolling mills. Mounted with a clearance fit on the roll neck and subjected to pure axial loads only, the inner ring is provided with one or more grooves on one or both sides for securing it to prevent relative movement on the roll.

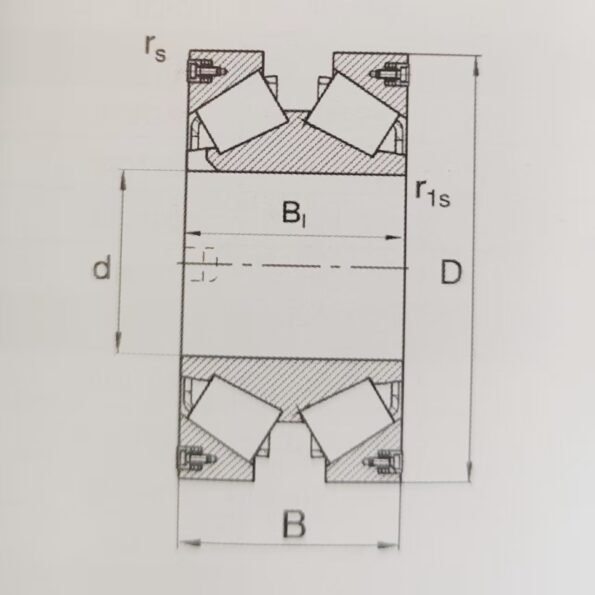

| Overall Dimensions(mm) | d | 520 |
| D | 820 | |
| T | 300 | |
| B | 300 | |
| r(1.2min) | 6 | |
| r(3.4min) | 4 | |
| Basic Rated Load(KN) | Dynamic Load | 8650 |
| Static Load | 1700 | |
| Weight(kg) | 610 | |
| Bearing Model | SKF | |
| FAG | 532273 | |
